Silvertone 7114 Ch= 528.51040
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1957 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 150858
-
- Brand: Silvertone

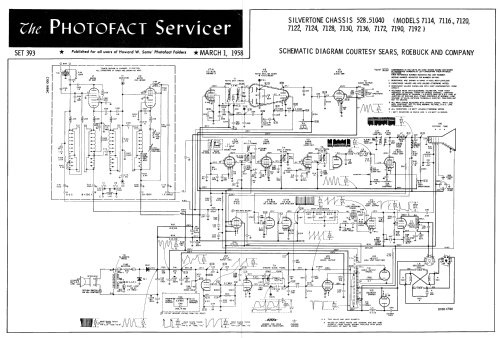

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Main principle
- Superhet with RF-stage
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: Silvertone 7114 Ch= 528.51040 - Sears, Roebuck & Co.; Chicago
- Notes
-
Silvertone model 7114 is a b/w TV with US standard VHF tuner channels 2 thru 13. Equipped with chassis 528.51040 and VHF tuner C100-1484C.Picture tube not specified.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 3-58, Set 393, Servicer)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
