• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1934/1935 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 324285

• • Brand: Silvertone

• Number of Tubes
• 14

• Valves / Tubes
• 78 41 78 78 37 75 37 45A or 45 45A or 45 45A or 45 45A or 45 45A or 45 45A or 45 5Z3

• Main principle
• Superhet with RF-stage; ZF/IF 445 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Silvertone 7164 Ch= 101.219 - Sears, Roebuck & Co.; Chicago

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 27 x 42 x 13 inch / 686 x 1067 x 330 mm

• Notes

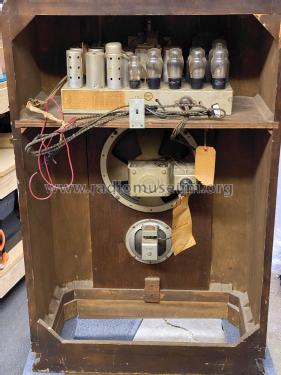

• Presence of 2 speakers.

  Shares the same chassis as Silvertone 1822 and 1831.

• Net weight (2.2 lb = 1 kg)
• 85 lb (85 lb 0 oz) / 38.590 kg

• Literature/Schematics (1)
• Rider's Perpetual, Volume 6 = 1935 and before (6-24)

• Author
• Model page created by Nathan Slingerland. See "Data change" for further contributors.
