Silvertone 7410 Receiver Order= 57W 7410N
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1972
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 259644
-
- Brand: Silvertone
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 120 Volt
- Loudspeaker
- 4 Loudspeakers
- Power out
- 120 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org
- Model: Silvertone 7410 Receiver Order= 57W 7410N - Sears, Roebuck & Co.; Chicago
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 17 x 5.25 x 12 inch / 432 x 133 x 305 mm
- Notes
-

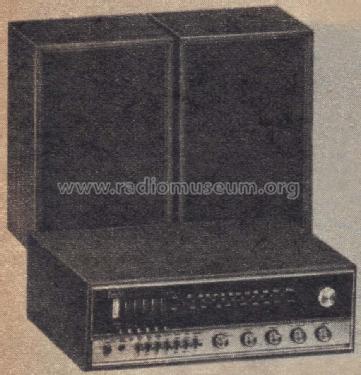

The Sears Silvertone 7410 is an AC operated AM/FM/FM Stereo receiver. Has phonograph and tape deck inputs. Each speaker enclosure contains Qty(1) PM 8" woofer speaker and Qty(1) PM 3.5" tweeter speakers. Cabinets are hardwood covered with walnut grained vinyl.
Note: A partial schematic of just the pre-amplifier and power amplifier can be found in SAMS Photofact Set 1057, folder SED (Special Equipment Data).
- Price in first year of sale
- 297.95 $
- Literature/Schematics (2)
- Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1972, page 896.)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
