• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1958/1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 237052

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117V = 110 -120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Silvertone 8005 Ch= 132.42700 Order=57D 8005 [Brown] - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 13 x 6.5 x 6 inch / 330 x 165 x 152 mm

• Notes

• Silvertone model 8005 is an AC-DC operated AM receiver with clock (alarm).
  Silvertone 8005, Brown.
  Silvertone 8006, Ivory.
  Silvertone 8007, Green .

• Price in first year of sale
• 18.95 $

• Mentioned in
• Machine Age to Jet Age II (page 272.)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 395 Folder 14 dated 4-58)

• Literature/Schematics (3)
• Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1958, page 853.)

• Literature/Schematics (4)

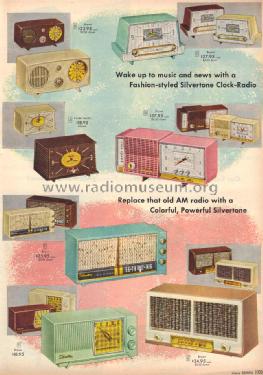

• Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1957, page 1008 & page 1009.)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
