Silvertone 8021 Ch= 528.53040 Order=57D 8021
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1957/1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 141423
-
- Brand: Silvertone
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

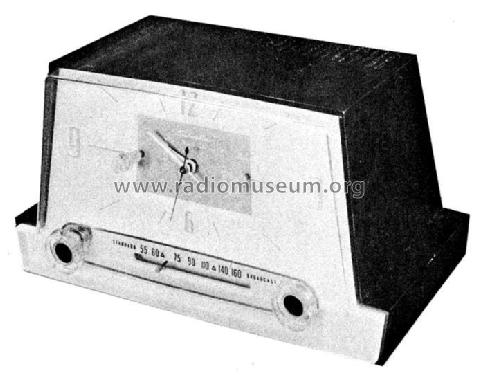

- Model: Silvertone 8021 Ch= 528.53040 Order=57D 8021 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 10.875 x 6.375 x 5.5 inch / 276 x 162 x 140 mm
- Notes
-
Cabinet=Brown.

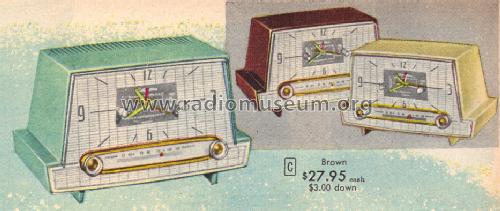

The Sears, Roebuck & Co. Model Silverton 8021 Chassis 528.53040 is an AC Operated AM Receiver with Clock.Model 8022: Ivory cabinet
Model 8023: Aquamarine cabinet
- Price in first year of sale
- 27.95 $
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 3-58, Set 392, Folder 10)
- Literature/Schematics (4)
- Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1957, page 1008 & page 1009. Spring/Summer 1958, page 852.)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
