Silvertone 8022 Order= 57H 8022
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1968/1969
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 254223
-
- Brand: Silvertone
- Number of Transistors
- 16
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 105-120 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 8022 Order= 57H 8022 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 22.25 x 9.3125 x 4.75 inch / 565 x 237 x 121 mm
- Notes
-
The Sears Silvertone 8022 is an AC operated AM/FM stereo receiver. Has Qty(2) Elliptical PM 6" x 4" end mounted speakers. Cabinet is simulated wood endcaps and base, with dark brown grille cloth on front and top. Has terminals for outside speakers.
- Price in first year of sale
- 84.95 $
- Literature/Schematics (2)
- Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1969, page 920.)
- Literature/Schematics (3)

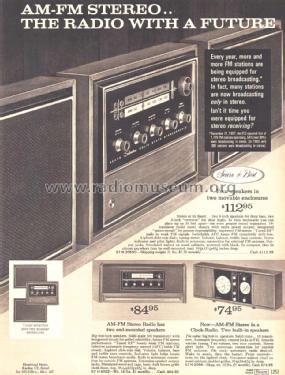

- Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1968, page 1251.)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
