Silvertone 8025 Ch= 528.53090 Order=57D 8025
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1957/1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 142272
-
- Brand: Silvertone

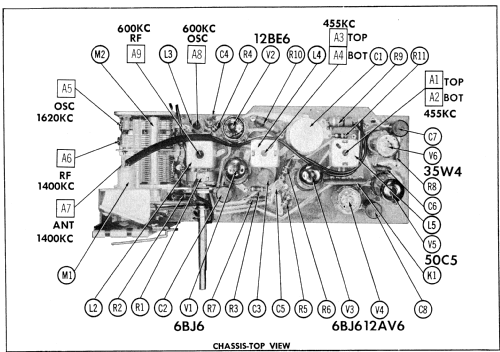

Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 8025 Ch= 528.53090 Order=57D 8025 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 14.25 x 6.25 x 5 inch / 362 x 159 x 127 mm
- Notes
-
The Sears Silvertone 8025 is an AC operated 6 tube BC band clock radio. Has electric calender that shows the date and the day of the week. Has appliance outlet on rear of cabinet.
The following models use the same chassis and schematic:
Model Cabinet 8025 Brown 8026 Ivory 8027 Harmony House Frosty Pink
- Price in first year of sale
- 37.95 $
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 2-58, Set 389, Folder 13)
- Literature/Schematics (4)
- Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1957, page 1008 & page 1009. Spring/Summer 1958, page 852.)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
