Silvertone 8045A Ch= 528.53051
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 175970
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org

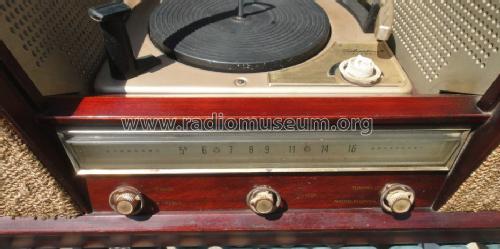

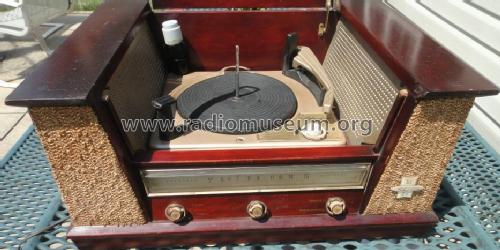

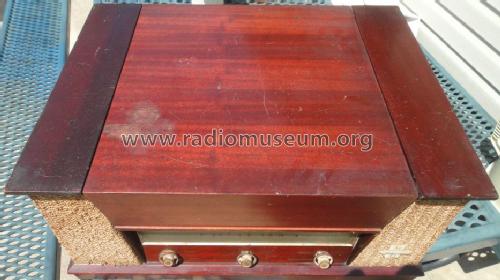

- Model: Silvertone 8045A Ch= 528.53051 - Sears, Roebuck & Co.; Chicago
- Shape
- Console, Lowboy (legs < 50 %).
- Notes

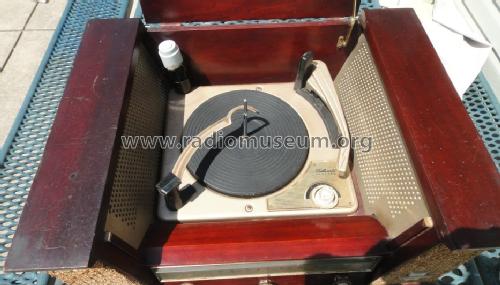

- The Sears, Roebuck & Co Model 8045A is an AC Operated AM Receiver with 4 Speed Automatic Record Changer.
- Literature/Schematics (1)

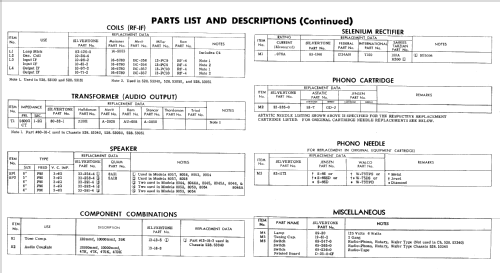

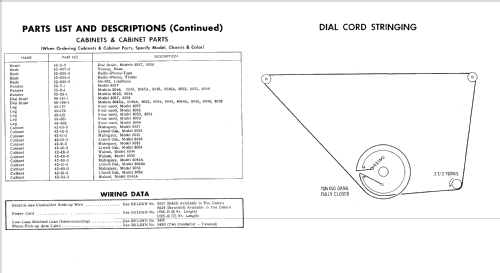

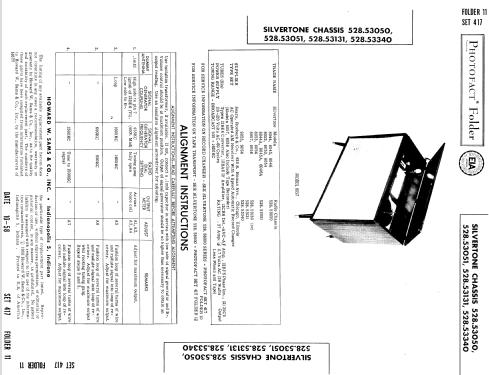

- Photofact Folder, Howard W. SAMS (Date 10-58, Set 417, Folder 11)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
