• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 324414

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes

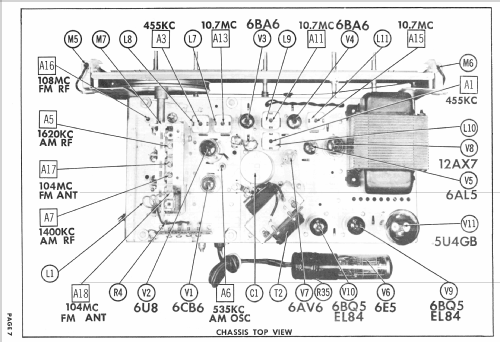

• 6CB6 6U8 6BA6 6BA6 6AL5 6E5 6AV6 12AX7 6BQ5 or EL84 6BQ5 or EL84 5U4GB

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 105 -125 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Silvertone 8061A Ch= 528.53150 - Sears, Roebuck & Co.; Chicago

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Silvertone model 8061A is an AC operated FM-AM receiver with 4 speed automatic record changer.

• Literature/Schematics (1)

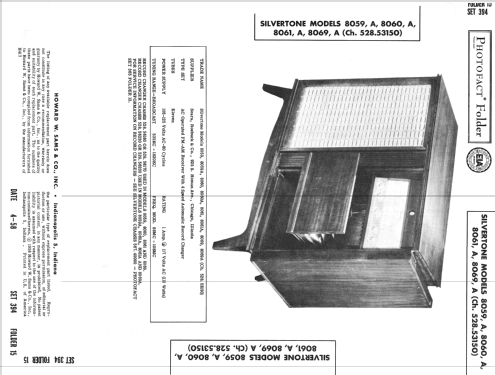

• Photofact Folder, Howard W. SAMS (Set 394 Folder 15 dated 4-58)

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
