Silvertone 8132 Ch= 101.854
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1949 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 227104
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 30
- Valves / Tubes
- 7AG7 7F8 6AK5 7F8 6BA6 6BA6 6BA6 6AU6 6AL5 6AU6 7B5 6AU6 6AU6 6AU6 7A6 7F7 7AF7 7AF7 7B5 6AL5 6AU6 7AF7 6BG6G 5V4G 1B3GT 5U4G 5U4G 6AT6 7B5 10BP4
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 8132 Ch= 101.854 - Sears, Roebuck & Co.; Chicago
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
10" round CRT, US standard VHF tuner channels 2 through 13. Elliptical speaker 5" x 7".
See also similar model Silvertone 8133 with AM and phono.
- Mentioned in

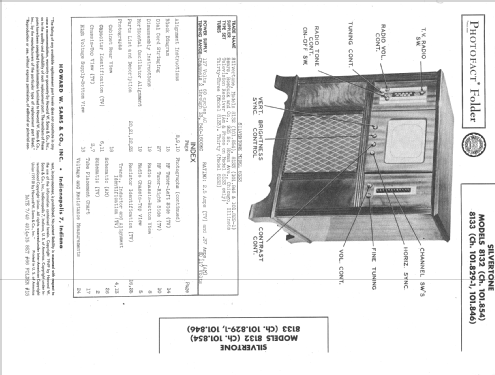

- Photofact Folder, Howard W. SAMS (Set 66, Folder 15, Date 7/49)
- Literature/Schematics (1)
- Rider's TV, 3-12
- Author
- Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
