Silvertone 8148 Ch= 109.632
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1948/1949
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 225230
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- Audio-Amplification
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 4 inch = 10.2 cm
- Material
- Various materials
- from Radiomuseum.org
- Model: Silvertone 8148 Ch= 109.632 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 12.5 x 7 x 5.75 inch / 318 x 178 x 146 mm
- Notes
-
AC operated Portable Phono Player with 3 tube Amplifier.
- Net weight (2.2 lb = 1 kg)
- 10 lb 0 oz (10 lb) / 4.540 kg
- Price in first year of sale
- 29.95 $
- Mentioned in

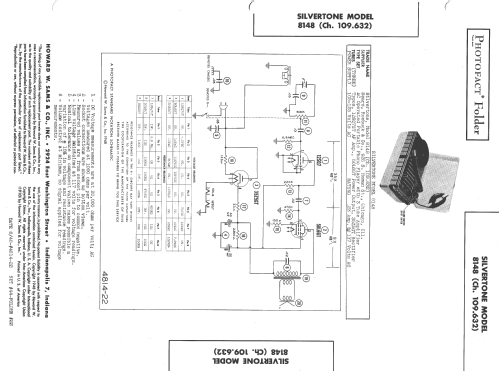

- Photofact Folder, Howard W. SAMS (Vol.5 8/48 4814-22 Set 44 Folder 22)
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (#197, Fall & Winter 1948/49, page 876. #198, Spring & Summer 1949, page 630.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
