Silvertone 8151 Ch= 528.50240
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1958 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 177388
-
- Brand: Silvertone

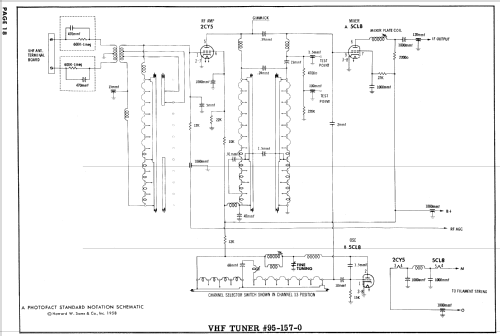

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 14
- Valves / Tubes
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 8151 Ch= 528.50240 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, with any shape - general.
- Notes
- Television Receiver Chassis, Picture tube: 17CFP4
Tuning Range: TV - Channels 2 thru 13, 14 thru 84 UHF.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 9-58, Set 411, Folder 2)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
