• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1948 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 231512

• • Brand: Silvertone

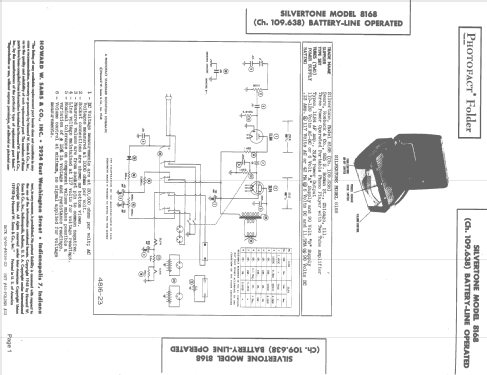

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 1LH4 3LF4

• Wave bands
• - without

• Details
• Record Player (not changer)

• Power type and voltage
• Line / Batteries (any type) / 110 -120 / 6 & 90 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Silvertone 8168 Ch= 109.638 - Sears, Roebuck & Co.; Chicago

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• Three Power Operated Portable Phono Player with 2 tube Amplifier

• Mentioned in
• Photofact Folder, Howard W. SAMS (Vol. 5/48 9/48 4816-23 Set 46 Folder 23)

• Author
• Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
