Silvertone 8220 Ch= 101.801-3D
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1948/1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 221368
-
- Brand: Silvertone
By Courtesy Of EBAY User: akachuck
By Courtesy Of EBAY User: akachuck
By Courtesy Of EBAY User: akachuck
By Courtesy Of EBAY User: akachuck
By Courtesy Of EBAY User: akachuck
By Courtesy Of EBAY User: akachuck
By Courtesy Of EBAY User: akachuck
By Courtesy Of EBAY User: akachuck
- Number of Tubes
- 5
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 1.5/90 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 8220 Ch= 101.801-3D - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 17.25 x 11 x 10.875 inch / 438 x 279 x 276 mm
- Notes
-

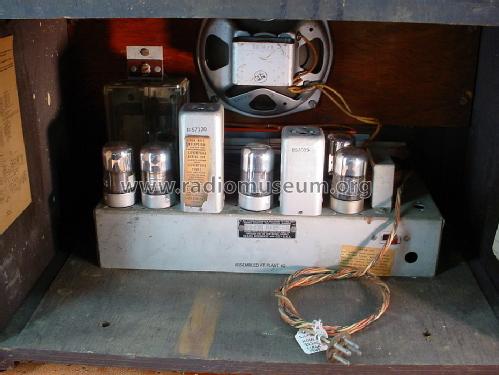

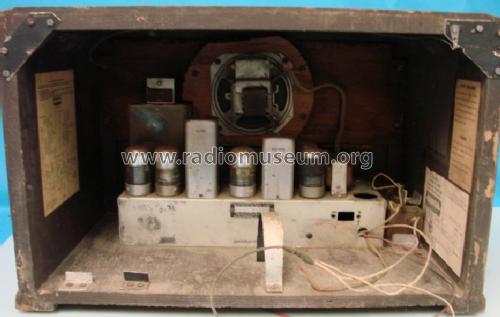

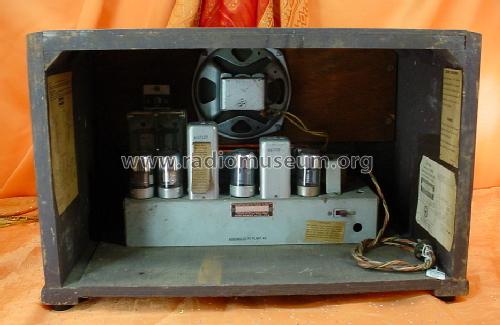

Farm Radio. Paper label inside cabinet lists the chassis as 101.801-3D, however the metal plate attached to the chassis lists 101.881-3D. Stamp on rear of chassis states "Assembled at plant #2". This model was manufactured for Sears by Colonial Radio Corp., Buffalo, NY (Sears Manufacturer Source Number Code 101).
This radio is without battery. The same Silvertone model 8221 is with 1000-hour A-B Battery Pack, $45.90.
- Price in first year of sale
- 39.95 $
- Literature/Schematics (3)

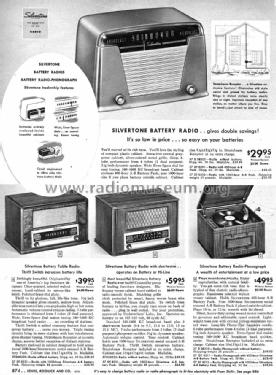

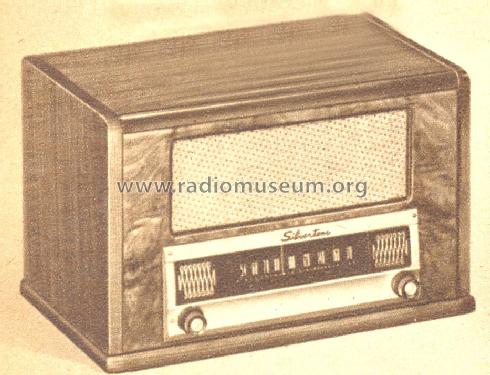

- Sears, Roebuck Catalogs (Silvertone) (#197, Fall & Winter 1948/49, page 874.)
- Author
- Model page created by John Kusching. See "Data change" for further contributors.
