• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 158351

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12BA6 12BE6 12BA6 12AV6 35C5 35W4

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110 - 120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Silvertone 9025 Ch= 528.53420 Order=57Y 9025 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 14.25 x 6.25 x 5 inch / 362 x 159 x 127 mm

• Notes

• The Sears Silvertone 9025 is an AC operated 6 tube AM Receiver with Electric Clock. The AM band tuning range is 535 to 1600kHz. Cabinet color is Ivory.

  The following models use the same schematic and chassis:

  Model	Cabinet Color
  9024	Brown
  9025	Ivory

  See details and summaries about Sears catalogs etc.

• Price in first year of sale
• 34.95 $

• Literature/Schematics (1)

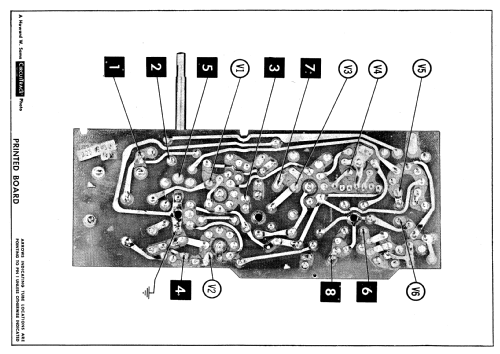

• Photofact Folder, Howard W. SAMS (Date 3-59, Set 436, Folder 14)

• Literature/Schematics (4)
• Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1959, page 877.)

• Author
• Model page created by Egon Penker. See "Data change" for further contributors.
