Silvertone 9027 Ch= 528.53411 Order=57Y 9027
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 166325
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 4 inch = 10.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 9027 Ch= 528.53411 Order=57Y 9027 - Sears, Roebuck & Co.; Chicago
- Shape

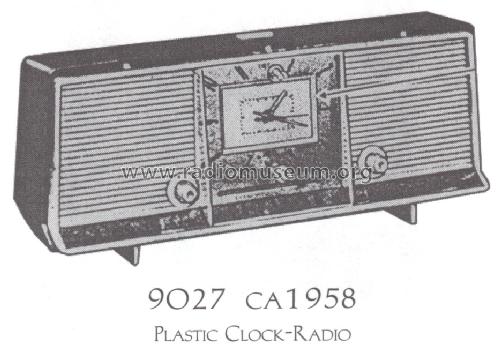

- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 15.25 x 6.5 x 5.875 inch / 387 x 165 x 149 mm
- Notes
-

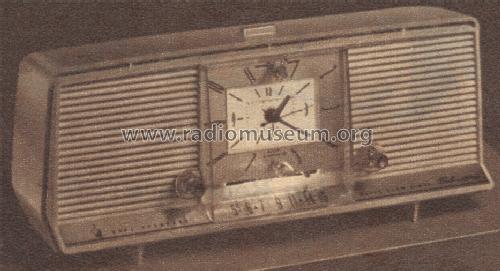

The Sears Silvertone 9027 is an AC operated 6 tube AM Receiver with Electric Clock. The AM band tuning range is 540 to 1620kHz. Has Qty(2) PM 4" speakers. Also has 1100W utility outlet that is controlled by the clock. Cabinet color is Brown.
This model was available with two different chassis during this year, the chassis being 528.53410 and 528.53411. The difference between the chassis are the two resistor values that are in series with the lamp (R12, R13). This model was also available in later years with chassis 528.53730, which has many more differences as compared to the original two chassis.
The following models use the same schematic and mostly similar chassis:
Model Chassis Resistor R12, R13 Cabinet Color 9027 528.53410 18K Ohms Brown 9027 528.53411 27K Ohms Brown 9028 528.53410 18K Ohms Ivory 9028 528.53411 27K Ohms Ivory 9029 528.53410 18K Ohms Harmony House Frosty Pink 9029 528.53411 27K Ohms Harmony House Frosty Pink See details and summaries about Sears catalogs etc.
- Price in first year of sale
- 42.95 $
- Mentioned in
- Machine Age to Jet Age II (page 273.)
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 5-59, Set 441, Folder 16)
- Literature/Schematics (4)

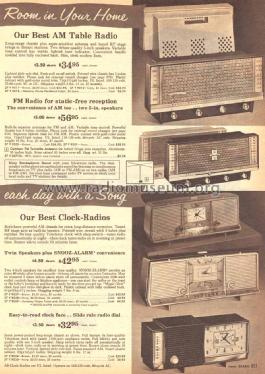

- Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1959, page 877.)
