Silvertone 9101 Ch= 101.809 3C
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1949/1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 202486
-
- Brand: Silvertone

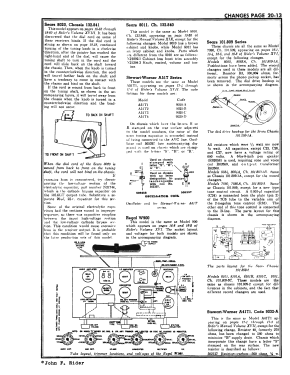

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 9101 Ch= 101.809 3C - Sears, Roebuck & Co.; Chicago
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 24.625 x 30.625 x 15.375 inch / 625 x 778 x 391 mm
- Notes
-
Built-in loop antenna. The Silvertone model 9102 is the same but except with new 3-speed record changer, $ 109.50.
- Price in first year of sale
- 94.50 $
- Mentioned in
- Photofact Folder, Howard W. SAMS (58-20 see 8101)
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (#199, Fall & Winter 1949/50, page 765. #200, Spring & Summer 1950, page 602.)
- Author
- Model page created by Tony Warren. See "Data change" for further contributors.
