Silvertone 9134 Ch= 101.866 and Ch= 101.859
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1950 ?
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 252612
-
- Brand: Silvertone

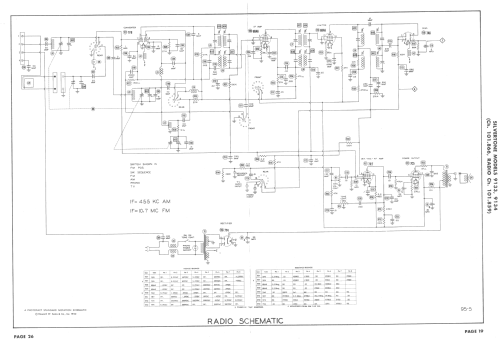

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 33
- Valves / Tubes
- 6BH6 6AG5 6AB4 6BA6 6BA6 6AU6 6AU6 6AL5 6AU6 7B5 6AU6 6AU6 7A6 7F7 7AF7 7AF7 7B5 6AL5 6AU6 7AF7 6BG6G 6W4GT 1B3GT 5U4G 5U4G 12LP4 7F8 6BA6 6BA6 7A6 7R7 7C5 7Y4
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz
- Wave bands
- Wave Bands given in the notes.
- Details
- Record Player (perh.Changer)
- Power type and voltage
- Alternating Current supply (AC) / 60 cycles, 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.75 inch = 19.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 9134 Ch= 101.866 and Ch= 101.859 - Sears, Roebuck & Co.; Chicago
- Shape
- Console with any shape - in general
- Notes
-
AM, FM.TV Receiver with 12 inch CRT and Phono Combination alternative 6C4 instead of 6AB4.
Channels 2 thru 13
AM 540-1600kc FM 88-108Mc
- Mentioned in
- Photofact Folder, Howard W. SAMS (Vol.10/50 Date 5-50 95-5 Set 95 Folder 5)
- Author
- Model page created by Friedrich Weber † 12.09.2014. See "Data change" for further contributors.
