Silvertone 9201 Ch= 132.44900 Order=57Y 9201
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 141646
-
- Brand: Silvertone
Sams Photofact Folders
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 5 inch = 12.7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 9201 Ch= 132.44900 Order=57Y 9201 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 15.5 x 7.5 x 6 inch / 394 x 191 x 152 mm
- Notes
-
The Sears Silvertone 9201 is an AC operated 6 tube AM/FM Receiver. The AM band tuning range is 530 to 1650kHz, the FM band tuning range is 88 to 108MHz. Has Qty(2) PM 5" speakers. Also has phonograph input and tone control. Cabinet color is Ivory with gold color metal trim.
The following models use the same schematic and chassis:
Model Cabinet Color 9200 Brown 9201 Ivory See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Noblitt-Sparks, Ind. (Sears Manufacturer Source Number Code 132).
- Price in first year of sale
- 58.95 $
- Literature/Schematics (1)

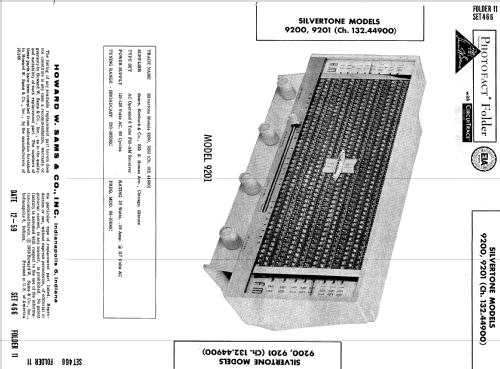

- Photofact Folder, Howard W. SAMS (Date 12-59, Set 466, Folder 11)
- Literature/Schematics (4)
- Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1959, page 877.)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
