Silvertone 9215 Ch=528.53350 Order=57Y 9215
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1959
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 78836
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / AC/DC 110-120 / 67.5 & 7.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone 9215 Ch=528.53350 Order=57Y 9215 - Sears, Roebuck & Co.; Chicago
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 10.5 x 6.5 x 3 inch / 267 x 165 x 76 mm
- Notes
-
The Sears Silvertone 9215 is an AC/DC or battery operated 4 tube AM radio. AM band tuning range is 540 to 1620kHz. Has built-in antenna. Cabinet is Aquamarine.
The following models use the same chassis and schematic:
Model Cabinet Color 9214 Cocoa Brown 9215 Aquamarine
- Price in first year of sale
- 23.95 $
- Circuit diagram reference
- Beitman Radio Diagrams Vol. 20, 1960
- Literature/Schematics (1)

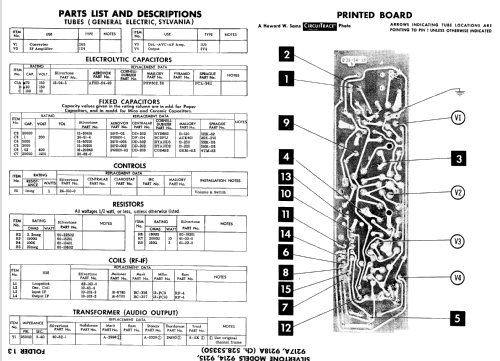

- Photofact Folder, Howard W. SAMS (Date 4-59, Set 438, Folder 13)
- Literature/Schematics (4)
- Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1959, page 874.)
- Author
- Model page created by Trev Levick. See "Data change" for further contributors.
