• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1968 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 328487

• • Brand: Silvertone

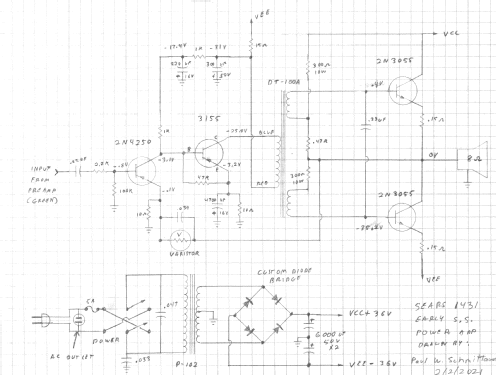

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• 2N4250 2N4250 unknown_tr 2N3055 2N3055

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Guitar Amplifier

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 40 W (undistorted)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Silvertone Base Amplifier 200BXL Ch= 1431 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 22 x 10 x 7 inch / 559 x 254 x 178 mm

• Notes

• This is a rare early model solid state made by DanElectro for Sears.  Note that the speaker unit is not shown.  Power output is based on a bench test.

  See later model 200BXL Ch= 257.14313201.

• Net weight (2.2 lb = 1 kg)
• 20 lb 0 oz (20 lb) / 9.080 kg

• Author
• Model page created by Paul Schmittauer. See "Data change" for further contributors.
