Silvertone Dur-Pac 7217 Ch= 528.33300
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1955 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 257004
-
- Brand: Silvertone
Silvertone 7217 Portable AM Radio

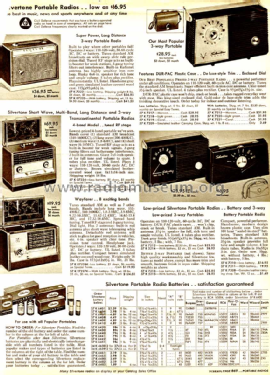

Scanned from the Sears Catalog page 869.
Scanned from the Sears Catalog page 869.
- Number of Tubes
- 4
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Line / Batteries (any type) / AC/DC 117 / ? & ? Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Silvertone Dur-Pac 7217 Ch= 528.33300 - Sears, Roebuck & Co.; Chicago
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 9.5 x 6.75 x 3.5 inch / 241 x 171 x 89 mm
- Notes
-
The color is maroon. Also available as model 7216 (gray), 7218 (green), and 7219 (red).
Not to be confused with the 10-tube Silvertone 7217 model.
- Author
- Model page created by a member from A. See "Data change" for further contributors.
