• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 223606

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 12BE6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 4 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Silvertone Meteor 7001 Ch= 132.39400 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 9.5 x 5.125 x 4.75 inch / 241 x 130 x 121 mm

• Notes

• Brown plastic cabinet.

• Price in first year of sale
• 10.50 $

• Source of data
• Photofact Folder, Howard W. SAMS

• Mentioned in
• Machine Age to Jet Age II (page 269.)

• Literature/Schematics (1)

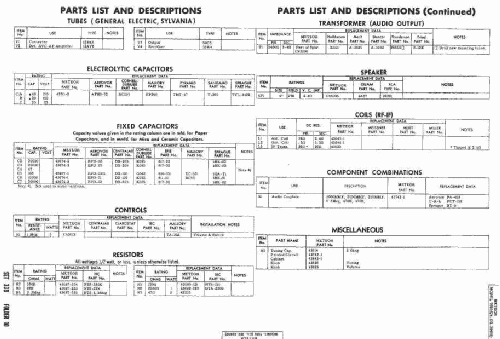

• Photofact Folder, Howard W. SAMS (Set 339 Folder 10 dated 12-56)

• Literature/Schematics (3)
• Sears, Roebuck Catalogs (Silvertone) (page 866)

• Author
• Model page created by João-Afonso Santos. See "Data change" for further contributors.
