Silvertone 1761 Ch= 100.351 Order= 57H 1761
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1940/1941
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 224592
-
- Brand: Silvertone
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 105-125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
- Power out
- 1.8 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org

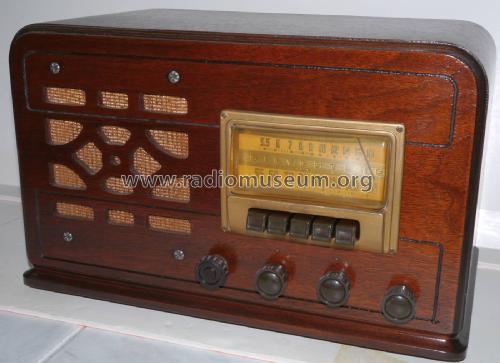

- Model: Silvertone 1761 Ch= 100.351 Order= 57H 1761 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 14.875 x 9 x 8 inch / 378 x 229 x 203 mm
- Notes
-
This radio has the same chassis as Silvertone models R1261 and 1561. The only difference appears to be case style.
Frequency range:
540 - 1620 kHz
5.5 - 18.1 mHz
- Net weight (2.2 lb = 1 kg)
- 15 lb 7 oz (15.438 lb) / 7.009 kg
- Price in first year of sale
- 17.95 $
- Literature/Schematics (1)
- Rider's Perpetual, Volume 12 = ca. 1941 and before (pages 12-15 and 12-16)
- Literature/Schematics (3)

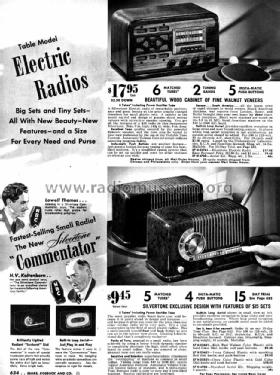

- Sears, Roebuck Catalogs (Silvertone) (#182, Spring & Summer 1941, page 634.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
