Silvertone PC-154, PC-154-5 Ch= 456.51580 to 456.51585
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1959
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 155559
-
- Brand: Silvertone

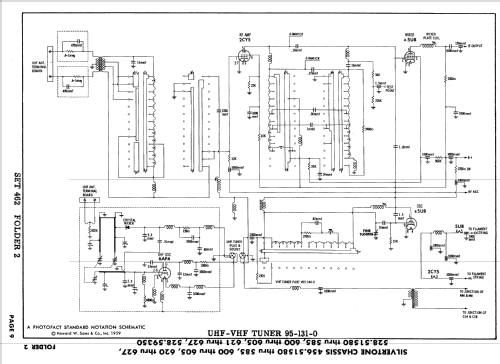

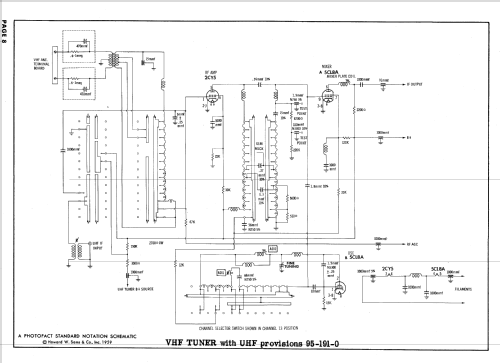

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 15
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110 - 120 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone PC-154, PC-154-5 Ch= 456.51580 to 456.51585 - Sears, Roebuck & Co.; Chicago
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
- 21" b/w Television Receiver, Picture tube: 21CBP4A, Some models are equipped with continuous UHF tuner, tube quantity UHF: 16.
Tuning Range: TV - Channels 2 thru 13 VHF, 14 thru 84 UHF.
- Literature/Schematics (1)
- Photofact Folder, Howard W. SAMS (Date 11-59, Set 462, Folder 2)
- Author
- Model page created by Egon Penker. See "Data change" for further contributors.
