• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1968–1970

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 217784

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 105 - 120 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 4 inch = 10.2 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

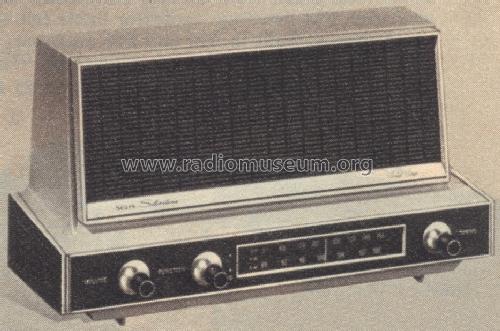

• Model: Silvertone Solid State 8014 Beige Ch= 132.40702 Order=57P 8014 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 12.9375 x 6.875 x 4.1875 inch / 329 x 175 x 106 mm

• Notes
• Sears Silvertone Solid State AM-FM Table Top Radio Model 8014 Beige Chassis = 132.40702.
  Power Consumption 8 Watts.
  See also Sears Silvertone Solid State AM-FM Table Top Radio Model 8015 White Chassis = 132.40702.

• Price in first year of sale
• 28.95 $

• Literature/Schematics (2)
• Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1968, page 828. Fall/Winter 1968, page 1250.)

• Literature/Schematics (3)
• Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1970, page 864.)

• Literature/Schematics (4)
• Sears, Roebuck Catalogs (Silvertone) (Fall/Winter 1969, page 921.)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
