• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1955 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 349377

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• 6BQ7 6J6 6CB6 6CB6 6CB6 6AL5 6CB6 6AU6 6AL5 6AV6 6AQ5 12AU7 12AU7 6SN7 6AU5 6W4 6S4 1B3 5U4 6AX5 16RP4

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: TV Set 1102 - Sears, Roebuck & Co.; Chicago

• Notes

• Black/white TV, with only VHF. 16 inch picture tube with 70° deflection.

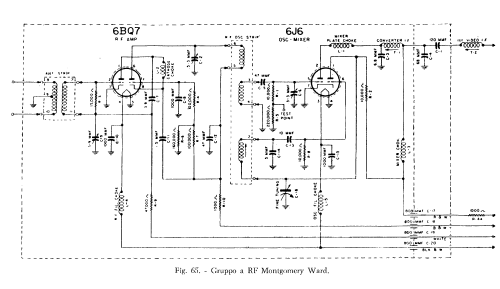

  The RF group is the same of Montgomery Ward 25GSE.
  Phono input.

• Mentioned in
• -- Schematic (“Televisori Commerciali” E. Costa U. Hoepli editor, Italy vol. I, II edition 1962.)

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
