• Country
• Italy

• Manufacturer / Brand
• Sinudyne, Societá Elettronica Italiana SEI (S.E.I.); Ozzano Emilia (Bologna)

• Year
• 1961/1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 113149

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 6AJ8 or ECH81 6DA6 or EF89 6AK8 or EABC80 EM84 UL84 UY85

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

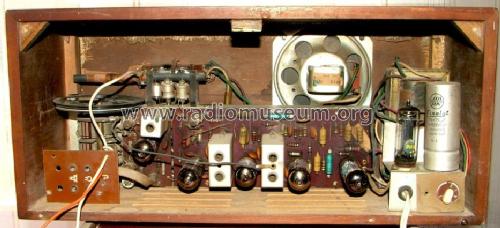

• Model: De Luxe 260 - Sinudyne, Societá Elettronica

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 420 x 220 x 190 mm / 16.5 x 8.7 x 7.5 inch

• Source of data
• Guida Pratica Antique Radio IV (2001)

• Author
• Model page created by Romolo Amazio. See "Data change" for further contributors.
