• Country
• Germany

• Manufacturer / Brand
• Seibt, Dr. Georg (Nachf.); Berlin, auch München

• Year
• 1931/1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 5794

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• RENS1820 REN1821 REN1821 RENS1823d or REN1822

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 Special; 1 AF stage(s)

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Direct Current supply (DC) / 110-220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org

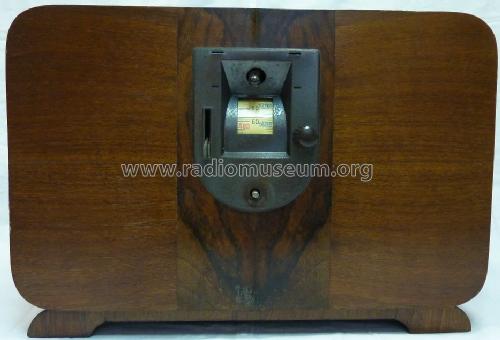

• Model: 41Gi - Seibt, Dr. Georg Nachf.;

• Dimensions (WHD)
• 400 x 265 x 230 mm / 15.7 x 10.4 x 9.1 inch

• Notes

• i = indirekt geheizte Röhren

  Preis ohne Röhren, zusätzlich:

  • RENS1820, 2 x REN1821, REN1822  Preis: 65,- RM
  • RENS1820, 2 x REN1821, RENS1823d  Preis: 70,- RM

• Price in first year of sale
• 170.00 RM +

• Source of data
• Katalog Radio-Zentrale Prohaska 1931/32 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + FS-Bestückungstabellen

• Mentioned in
• Radio-Schnorr-Katalog Nr.53 1931/32
