- Country
- Germany
- Manufacturer / Brand
- Seibt, Dr. Georg (Nachf.); Berlin, auch München
- Year
- 1948–1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 5645
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Number of Transistors
- Semiconductors
- UB2500
- Main principle
- Superheterodyne (common); ZF/IF 473 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: Dirigent - Seibt, Dr. Georg Nachf.;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 495 x 360 x 290 mm / 19.5 x 14.2 x 11.4 inch
- Notes
-
Auch mit magischem Auge UM11.
Die Funk-Technik (FT) nennt einen Lautsprecher-Durchmesser von 20 cm.
- Net weight (2.2 lb = 1 kg)
- 8.5 kg / 18 lb 11.6 oz (18.722 lb)
- Price in first year of sale
- 537.00 DM
- Source of data
- Radiokatalog Band 1, Ernst Erb

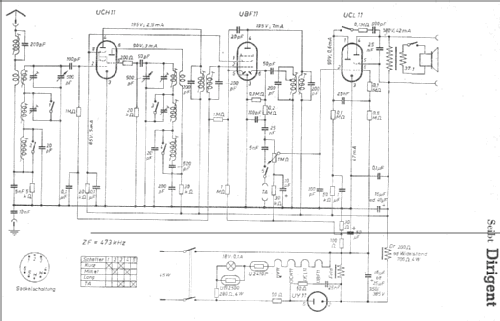

- Circuit diagram reference
- Lange-Nowisch
- Mentioned in

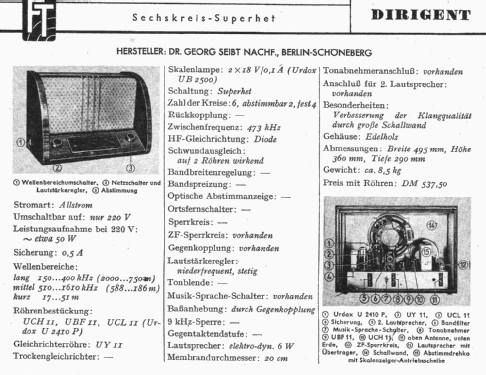

- Funk-Technik (FT) (4905)
- Literature/Schematics (1)
- -- Original prospect or advert ("Seibt hält für Sie bereit", Dr. Georg Seibt Nachf. Berlin-Schöneberg Feurigstrasse 54, 10.1949)
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
