EI134 (EL34; EJ134; EI 134)
Seibt, Dr. Georg (Nachf.); Berlin, auch München
- Country
- Germany
- Manufacturer / Brand
- Seibt, Dr. Georg (Nachf.); Berlin, auch München
- Year
- 1926–1928
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 5909

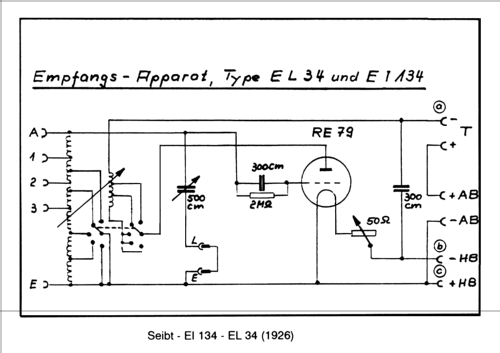

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- RE79
- Main principle
- TRF with regeneration
- Tuned circuits
- 2 AM circuit(s)
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - For headphones or amp.
- Material
- Wooden case, TUBES VISIBLE.
- from Radiomuseum.org
- Model: EI134 - Seibt, Dr. Georg Nachf.;
- Notes
- EA129 mit eingeb. Spulen (4 Knöpfe)
- Price in first year of sale
- 64.00 RM
- Source of data
- Kat. Radio Schnorr 1927/28 / Radiokatalog Band 1, Ernst Erb
- Mentioned in
- Funkgeschichte der GFGF (9503)
