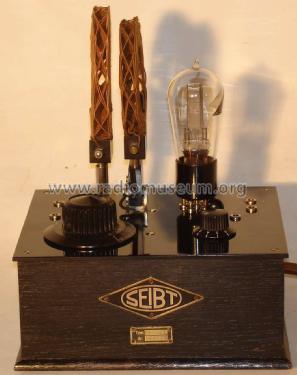

Georgette I EA247

• Country
• Germany

• Manufacturer / Brand
• Seibt, Dr. Georg (Nachf.); Berlin, auch München

• Year
• 1927–1929

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 5858

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• NZ420P or VT126_TKD

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries / 4 & 90 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org
• Model: Georgette I EA247 - Seibt, Dr. Georg Nachf.;

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 185 x 105 x 160 mm / 7.3 x 4.1 x 6.3 inch

• Notes
• Spulenkoppler links [510, 514, 559, 560]

• Net weight (2.2 lb = 1 kg)
• 1.2 kg / 2 lb 10.3 oz (2.643 lb)

• Price in first year of sale
• 35.00 RM +

• Source of data
• Katalog Radio-Zentrale Prohaska 1928 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Röhren in FS-Bestückungstabellen

• Mentioned in
• Radio-Quelle Leipzig. Großer Katalog 1927 (")

• Picture reference
• Eine Abbildung findet sich im Doppelband "Radios von gestern"
