5.5" Portable B/W TV with Stereo Radio and CD Player CDTV-2A Walkie

Sèleco (brand), Formenti Sèleco - Zanussi Elettronica; Pordenone, Milano

Data
Forum
Pictures
Collections

  • Year
  • 2002 ??
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 323212

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Main principle
  • Superhet with RF-stage
  • Wave bands
  • Wave Bands given in the notes.
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Radio with other functions
  • Power type and voltage
  • Batteries / addl. power jack / D: 10 x 1.5 / 13 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 6 cm = 2.4 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 5.5" Portable B/W TV with Stereo Radio and CD Player CDTV-2A Walkie - Sèleco brand, Formenti Sèleco
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 340 x 180 x 250 mm / 13.4 x 7.1 x 9.8 inch
  • Notes
    • Black and White television. Channels VHF: A - H2. Channels UHF: 21 - 69. Controls for vertical hold, bright and contrast.
    • Stereo/Mono FM radio, range 88 - 108 MHz.
    • AM radio, range 540 - 1600 kHz.
    • Stereo CD player.

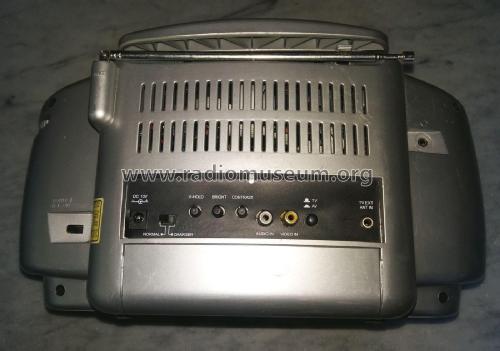

    Input audio/video from VCR. Internal ferrite antenna for AM. Extendable antenna for FM. Input for TV external antenna.
    This unit can be powered by internal 10 "D" size batteries, external AC adaptor 13 V 1.3 A or DC car cord. It can use also rechargeable batteries with internal battery recharge.
    5.5" monitor QPH20-7-56D

  • Net weight (2.2 lb = 1 kg)
  • 2.850 kg / 6 lb 4.4 oz (6.278 lb)
  • Author
  • Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
