• Country
• Great Britain (UK)

• Manufacturer / Brand
• Selector (Brand), Selectors Ltd.; Slough, London

• Year
• 1927

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 202864

Audio (to hear)

• Number of Tubes
• 7

• Valves / Tubes

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• Magnetic loudspeaker (reed) generic.

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

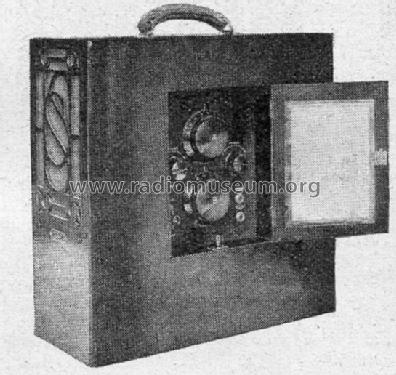

• Model: Selector Super - Selector Brand, Selectors Ltd.

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 18 x 18 x 8 inch / 457 x 457 x 203 mm

• Notes

• The Selector Super stands out. As in the previous models, the superheterodyne type of circuit is employed, and the intermediate frequency stages are adequately shielded, thereby entirely eliminating long-wave "pick-up."
  A large Amplion cone speaker is now fitted, and the low-frequency stages have been designed to operate it to its best advantage. The voltage of the high-tension accumulator has been increased and correspondingly the volume of reception is greater. The H.T. accumulator has a capacity of 1,500 milliamps and the L.T., 40 ampere hours actual.
   A ball-hearing turntable is attached to the base of their instrument.

  Superheterodyne receiver with combined oscillator-detector, three IF stages, and two LF amplifiers, with transformer and choke coupling. Wave range 200-600 and 1000-2000 metres. Enclosed frame aerial.

• Net weight (2.2 lb = 1 kg)
• 48 lb (48 lb 0 oz) / 21.792 kg

• Price in first year of sale
• 57.00 GBP

• Source of data
• Wireless World (The), London (WW, 79)

• Mentioned in
• -- Original prospect or advert (Amateur Wireless Sep 22, 1928 Page 361)

• Author
• Model page created by John Koster. See "Data change" for further contributors.
