2-m-Konverter UE 2 MOSFET

Semco Electronic GmbH, Wesseln

Data
Forum
Pictures
Collections

  • Year
  • 1969
  • Category
  • Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
  • Radiomuseum.org ID
  • 230931
    • Brand: Semcoset

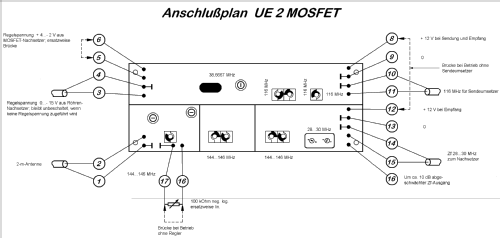

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • ZF/IF 28000...30000 kHz
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Powered by external power supply or a main unit. / DC 11...15 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • from Radiomuseum.org
  • Model: 2-m-Konverter UE 2 MOSFET - Semco Electronic GmbH, Wesseln
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 150 x 0 x 60 mm / 5.9 x 0 x 2.4 inch
  • Notes

  • Semcoset 2-m-Konverter UE 2 MOSFET.

    Frequenzbereich 144...146/28...30 MHz; Rauschzahl Fz: ca. 1,2; Durchgangsverstärkung: ca, 30 dB; Anschlussmöglichkeit eines HF-Verstärkungsreglers; 116-MHz-Ausgang für Sendeumsetzer.

  • Price in first year of sale
  • 167.00 DM
  • Source of data
  • -- Original prospect or advert
  • Author
  • Model page created by Bernd P. Kieck. See "Data change" for further contributors.
