Semcoport
Semco Electronic GmbH, Wesseln
- Country
- Germany
- Manufacturer / Brand
- Semco Electronic GmbH, Wesseln
- Year
- 1972 ?
- Category
- Amateur TRX: Transmitter/Receiver (and Transceiver)
- Radiomuseum.org ID
- 92048
-
- Brand: Semcoset
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 20
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 9000/1700 kHz
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org

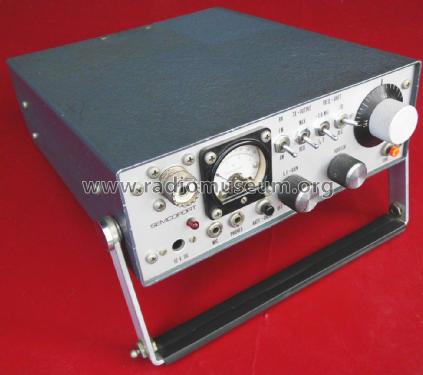

- Model: Semcoport - Semco Electronic GmbH, Wesseln
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 190 x 70 x 220 mm / 7.5 x 2.8 x 8.7 inch
- Notes
- ICs: 3
Portables 2-m-Funkgerät; Frequenzbereich: 144...146 MHz; Betriebsart RX: AM und FM, TX: FM; Pout: 3 W; zwei Ablagefrequenzen für den Relaisbetrieb. Stromversorgung mit NiCad-Akku (1,2 Ah) oder externen 12 V.
Preis 1972.
- Price in first year of sale
- 1,190.00 DM
- Source of data
- -- Original prospect or advert
- Author
- Model page created by a member from A. See "Data change" for further contributors.
