Semcoset HF-Baustein HFB3,0Si

Semco Electronic GmbH, Wesseln

Data
Forum
Pictures
Collections

  • Year
  • 1967 ??
  • Category
  • Kit (Parts plus instruction) or building instructions only
  • Radiomuseum.org ID
  • 121380
    • Brand: Semcoset

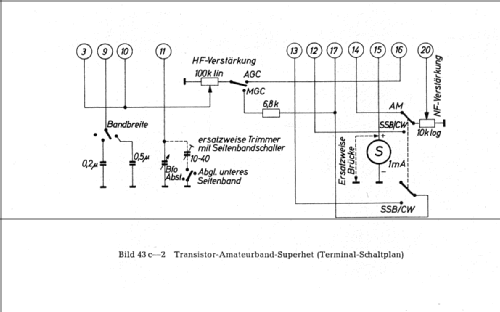

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 3
  • Main principle
  • Superheterodyne (common); ZF/IF 3000 kHz
  • Wave bands
  • Short Wave (SW only)
  • Power type and voltage
  • Powered by external power supply or a main unit. / 9 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Semcoset HF-Baustein HFB3,0Si - Semco Electronic GmbH, Wesseln
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 150 x 0 x 85 mm / 5.9 x 0 x 3.3 inch
  • Notes

  • Kurzwellen-Allband-Tuner

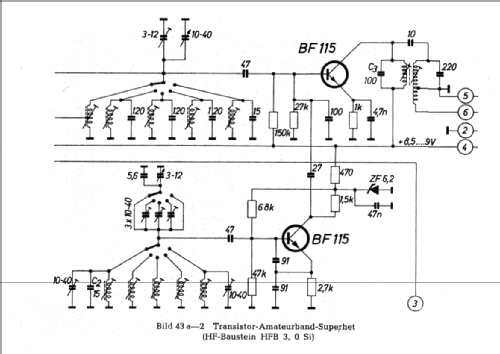

    Bereiche 3,5...3,8 MHz, 7,0...7,2 MHz, 14,0...14,4 MHz, 21,0...21,6 MHz, 28,0...30,0 MHz; Zwischenfrequenz 3,0 MHz; Ausgang 60 Ω; Durchgangsverstärkung ca. 30 dB; Empfindlichkeit ca. 1 µV/10 dB.

    Zusammen mit dem ZF-Baustein ZFB 3,0 Si und dem NF-Baustein NFB 12/9 Si lässt sich ein kompletter Empfänger aufbauen.

  • Price in first year of sale
  • 147.00 DM
  • Mentioned in
  • Bauer-Katalog, Bamberg, 1968
  • Literature/Schematics (1)
  • Hans Großmann, KW-Empfangstechnik, Albrecht Philler Verlag, Minden 1968, pag.107-118.
  • Author
  • Model page created by Aren van Waarde. See "Data change" for further contributors.
