• Country
• Germany

• Manufacturer / Brand
• Semco Electronic GmbH, Wesseln

• Year
• 1972

• Category
• Amateur TRX: Transmitter/Receiver (and Transceiver)

• Radiomuseum.org ID
• 96545

• • Brand: Semcoset

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet, double/triple conversion; ZF/IF 9000/460 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Batteries (any type) / 220 / 12 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

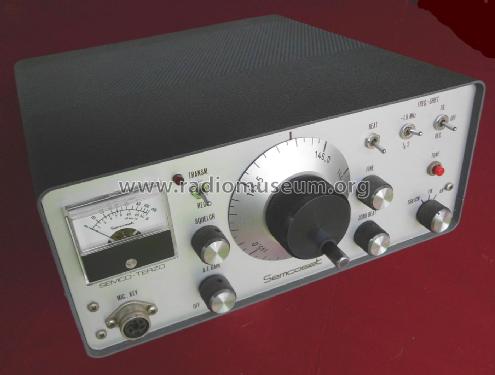

• Model: Semcoset Terzo-Analog - Semco Electronic GmbH, Wesseln

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 260 x 110 x 255 mm / 10.2 x 4.3 x 10 inch

• Notes
• Transistorisierter Transceiver für 144-146 MHz; CW, SSB, AM, FM. RX. Interner Spannungswandler von 12 auf 28 V. Spätere Version auch mit einem 455kHz Keramikfilter in der 2. ZF.

• Net weight (2.2 lb = 1 kg)
• 5.4 kg / 11 lb 14.3 oz (11.894 lb)

• Price in first year of sale
• 2,660.00 DM

• Source of data
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Otto Frosinn. See "Data change" for further contributors.

• Other Models

• Here you find 37 models, 34 with images and 25 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Semco Electronic GmbH, Wesseln
