- Country
- Germany
- Manufacturer / Brand
- Semco Electronic GmbH, Wesseln
- Year
- 1971 ?
- Category
- Amateur-Receiver (amateur bands, may include broadcast bands)
- Radiomuseum.org ID
- 188849
-
- Brand: Semcoset
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 6
- Main principle
- Superhet, double/triple conversion; ZF/IF 5500/460 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Powered by external power supply or a main unit. / 10,5 -15 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 0.5 W (unknown quality)
- from Radiomuseum.org
- Model: SME - Semco Electronic GmbH, Wesseln
- Dimensions (WHD)
- 50 x 130 x 17 mm / 2 x 5.1 x 0.7 inch
- Notes
-
2-m-Mini-Empfänger AM-FM Baugruppe, 144–146 MHz, Keramikfilter 460 kHz; Rauschzahl <=2; 1. ZF 5,5 MHz; 2. ZF 460 kHz; Nachbarkanaldämpfung (25-kHz-Raster) >70 dB.
- Price in first year of sale
- 229.00 DM
- Mentioned in
- - - Manufacturers Literature
- Literature/Schematics (1)

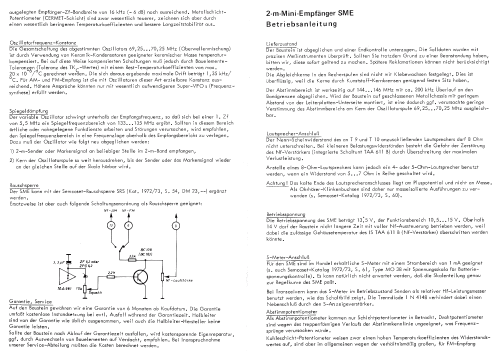

- -- Original prospect or advert
- Author
- Model page created by Helmut Frings. See "Data change" for further contributors.
