• Country
• Belgium

• Manufacturer / Brand
• Semda (brand); Bruxelles

• Year
• 1940 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 193844

• Number of Tubes
• 5

• Valves / Tubes
• ECH4 EF9 EBF2 EL3N AZ1

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch

• Power out
• 4.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

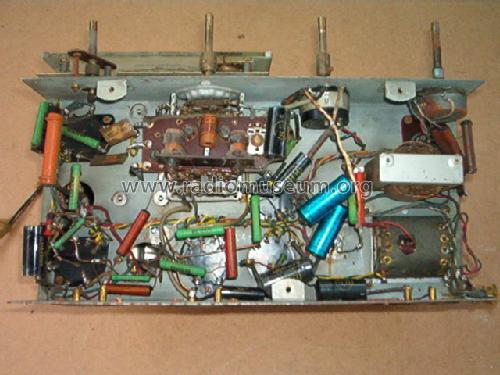

• Model: inconnu / unknown - Semda brand; Bruxelles

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 410 x 275 x 230 mm / 16.1 x 10.8 x 9.1 inch

• Net weight (2.2 lb = 1 kg)
• 9 kg / 19 lb 13.2 oz (19.824 lb)

• Author
• Model page created by William Van den Berghe. See "Data change" for further contributors.
