• Country
• United States of America (USA)

• Manufacturer / Brand
• Seminole (Sans & Streiffe, Inc.); Brookfield, IL

• Year
• 1962 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 108174

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Dry Batteries / AA: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

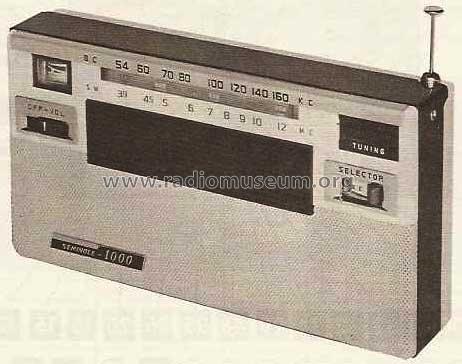

• Model: 1000 - Seminole Sans & Streiffe, Inc.

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 8.5 x 4 x 0 inch / 216 x 102 x 0 mm

• Notes

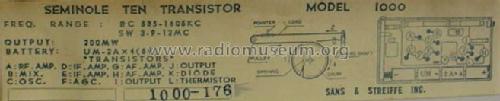

• SW 3,9 to 12 MHz, telescopic antenna, local-DX switch, tone switch, earphone jack, extern AC in, tuning/battery indicator, probably manufactured by Sharp.

• Mentioned in
• Collector's Guide To TrR1 Bunis trans.94 (1996, page 239)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Set 592 folder 9 date 8-62)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
