• Country
• Brazil

• Manufacturer / Brand
• SEMP (-TCL, Toshiba), Sociedade Eletro-Mercantil Paulista; São Paulo

• Year
• 1956 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 292843

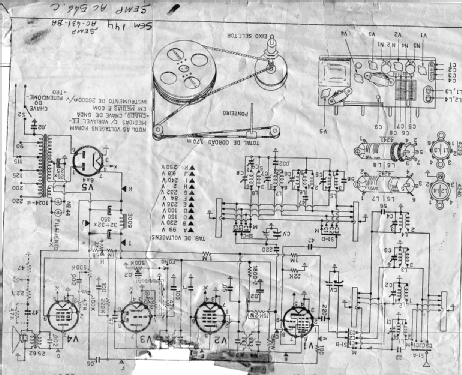

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6AJ8 6BA6 6AV6 6BQ5 6X4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 90; 115; 125; 200; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Power out
• 3 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org
• Model: AC 546/C - SEMP -TCL, Toshiba, Sociedade

• Shape
• Tablemodel, low profile (big size).

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Rafael Adriano Wolfart. See "Data change" for further contributors.
