- Country
- Brazil
- Manufacturer / Brand
- SEMP (-TCL, Toshiba), Sociedade Eletro-Mercantil Paulista; São Paulo
- Year
- 1954 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 169859

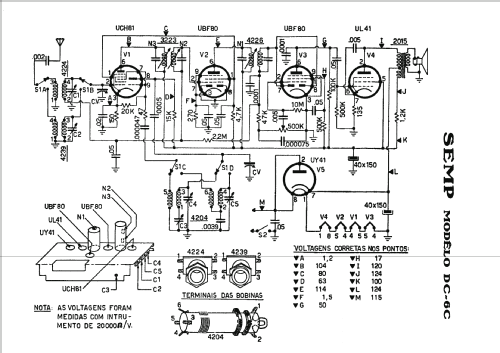

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 115 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: DC-6C - SEMP -TCL, Toshiba, Sociedade
- Source of data
- -- Schematic
- Author
- Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
- Other Models
-
Here you find 159 models, 123 with images and 45 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
