Toshiba Mini Hi-Fi system MS 6548CD

SEMP (-TCL, Toshiba), Sociedade Eletro-Mercantil Paulista; São Paulo

Data
Forum
Pictures
Collections

  • Year
  • 2004 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 281543

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Other Combination - see Notes; Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 110 - 127; 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 200 W (undistorted)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Toshiba Mini Hi-Fi system MS 6548CD - SEMP -TCL, Toshiba, Sociedade
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 275 x 318 x 398 mm / 10.8 x 12.5 x 15.7 inch
  • Notes

  • FM MW PLL radio with 3 CD changer and dual logic cassette deck

    MW = 530 to 1710 kHz
    FM = 87.5 to 108 MHz

    MP3 playability, clock and timer functions
    2 channel stereo, remote control
    Auxiliary input, phone output

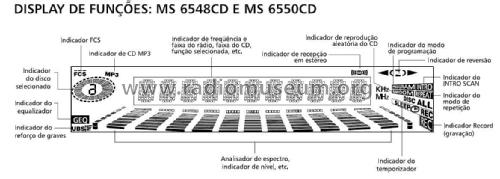

    FTD type display
    9 preset sound equalizer

    Accessories supplied = remote control with batteries, MW loop antena and FM indoor antena

    Output power = 2 x 100W rms @ 1 kHz, 10% THD

    Supplied with two speaker box, bass reflex type, 3 way speaker
    Speaker box dimensions = 200 x 318 x 282 mm, 4.63 kg each

    This set was produced by Semp factory in Manaus, Brazil, and marketed with Toshiba brand

  • Net weight (2.2 lb = 1 kg)
  • 9.220 kg / 20 lb 4.9 oz (20.308 lb)
  • Literature/Schematics (1)
  • Manufacturer literature
  • Author
  • Model page created by Antonio Rabitti. See "Data change" for further contributors.
