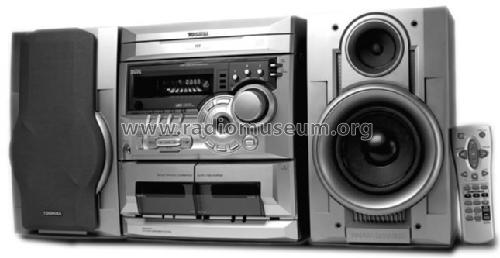

Toshiba Mini System MS6525CD
SEMP (-TCL, Toshiba), Sociedade Eletro-Mercantil Paulista; São Paulo
- Country
- Brazil
- Manufacturer / Brand
- SEMP (-TCL, Toshiba), Sociedade Eletro-Mercantil Paulista; São Paulo
- Year
- 2000 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 273040
Manufacturer catalog
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop; ZF/IF 450/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Other Combination - see Notes
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 25 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Toshiba Mini System MS6525CD - SEMP -TCL, Toshiba, Sociedade
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 275 x 318 x 395 mm / 10.8 x 12.5 x 15.6 inch
- Notes
-
MW FM radio PLL tuning, dual cassette deck and 3 discs CD changer
2 channel stereo
9 audio preset equalization
Clock and timer functions
Auxiliar input (cinch type connector)
Remote control
The MS6525CD is supplied with 2 loudspeaker box, bass reflex type, 2 way (woofer and tweeter)
Output power = 2x 12,5 Watts rms, 1kHz @ 8 Ohms load
- Net weight (2.2 lb = 1 kg)
- 5.4 kg / 11 lb 14.3 oz (11.894 lb)
- Literature/Schematics (1)
- - - Manufacturers Literature
- Author
- Model page created by Antonio Rabitti. See "Data change" for further contributors.
