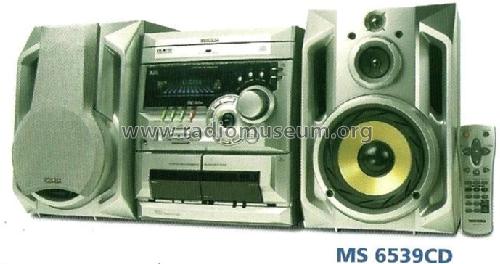

Toshiba Mini Hi-Fi system MS6539CD

SEMP (-TCL, Toshiba), Sociedade Eletro-Mercantil Paulista; São Paulo

Data
Forum
Pictures
Collections

  • Year
  • 2002 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 273137

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop; ZF/IF 450/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Other Combination - see Notes; Radio with other functions
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 200 W (undistorted)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Toshiba Mini Hi-Fi system MS6539CD - SEMP -TCL, Toshiba, Sociedade
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 275 x 318 x 395 mm / 10.8 x 12.5 x 15.6 inch
  • Notes
    • MW and FM radio, PLL tuning, dual cassette deck and 3 discs CD changer

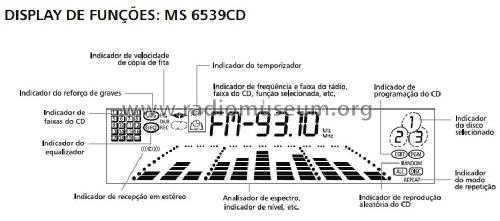

    • 2 channel stereo; Remote control; phone out, auxiliary input, FTD display
    • Clock, timer and alarm function
    • Output power 2x 100W rms

    The set is supplied with 2 loudspeaker box, 3 way speaker system, bass reflex, 4.7 kg each

    This set was produced by Semp factory in Manaus, Brazil, and marketed with Toshiba brand



  • Net weight (2.2 lb = 1 kg)
  • 9.4 kg / 20 lb 11.3 oz (20.705 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature
  • Author
  • Model page created by Antonio Rabitti. See "Data change" for further contributors.
