Toshiba Mini Hi-Fi system MS-4544CD

SEMP (-TCL, Toshiba), Sociedade Eletro-Mercantil Paulista; São Paulo

Data
Forum
Pictures
Collections

  • Year
  • 2004 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 273606

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details

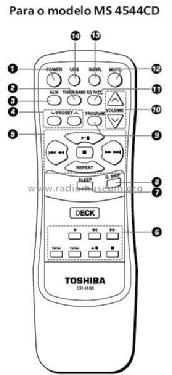

  • Other Combination - see Notes; Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 100 W (undistorted)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Toshiba Mini Hi-Fi system MS-4544CD - SEMP -TCL, Toshiba, Sociedade
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 273 x 326 x 398 mm / 10.7 x 12.8 x 15.7 inch
  • Notes

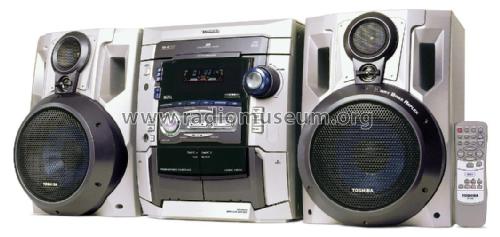

  • MW and FM PLL tuner with 30 presets, 3 discs CD changer and dual cassette deck.

    2 channel stereo, remote control, phone out (6.3 mm jack).
    Clock and timer functions, FTD display, auxiliary inputs (cinch type).
    Output power 2x 50W rms @ 10% THD

    The set is supplied with 2 speaker box, bass refles type, 3 speakers system and 9.04 kg each

    This set was produced by Semp factory in Manaus, Brazil, and marketed with Toshiba brand

  • Net weight (2.2 lb = 1 kg)
  • 7.940 kg / 17 lb 7.8 oz (17.489 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature
  • Author
  • Model page created by Antonio Rabitti. See "Data change" for further contributors.
