Toshiba CD-R / RW Portable CD player CDP4147

SEMP (-TCL, Toshiba), Sociedade Eletro-Mercantil Paulista; São Paulo

Data
Forum
Pictures
Collections

  • Year
  • 2000 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 281146

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio)
  • Power type and voltage
  • Batteries / addl. power jack / AA: 2 x 1.5 / 3 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Power out
  • 0.016 W (undistorted)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Toshiba CD-R / RW Portable CD player CDP4147 - SEMP -TCL, Toshiba, Sociedade
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 136 x 32 x 151 mm / 5.4 x 1.3 x 5.9 inch
  • Notes
    • 40 seconds anti shock data buffer
    • Bass boost function (+ 6dB @ 100 Hz)
    • Phone output
    • Line output = 0.6V @ 47K Ohms
    • 20 tracks memory; LCD display

    5 color options

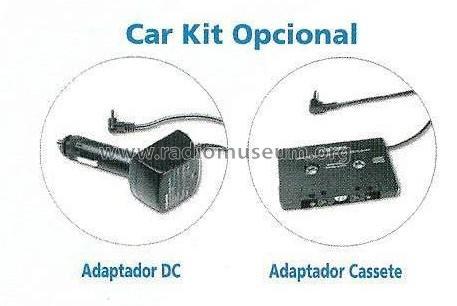

    Accessories supplied = phone with ear clip, pouch and 110 - 220V mains adapter, Optional accessories = 12V car adapter and cassette adapter

    This set was produced by Semp factory in Brazil, and marketed with Toshiba brand

  • Net weight (2.2 lb = 1 kg)
  • 0.270 kg / 0 lb 9.5 oz (0.595 lb)
  • Literature/Schematics (1)
  • Manufacturer literature
  • Author
  • Model page created by Antonio Rabitti. See "Data change" for further contributors.
