- Country
- Brazil
- Manufacturer / Brand
- SEMP (-TCL, Toshiba), Sociedade Eletro-Mercantil Paulista; São Paulo
- Year
- 1961 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 262010

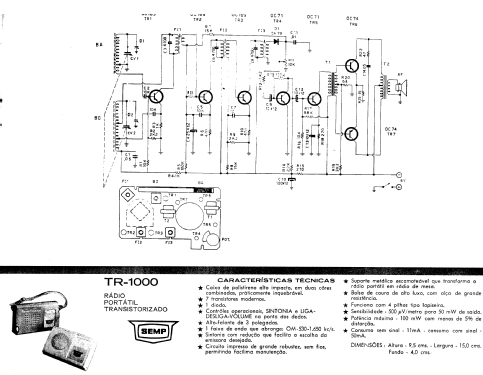

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
- Power out
- 0.1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: TR-1000 - SEMP -TCL, Toshiba, Sociedade
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 150 x 95 x 40 mm / 5.9 x 3.7 x 1.6 inch
- Notes
-
Semp - Indústria Brasileira.
OM (BC) 530 -1650 kHz.
- Mentioned in
- - - Manufacturers Literature
- Author
- Model page created by a member from BR. See "Data change" for further contributors.
- Other Models
-
Here you find 159 models, 123 with images and 45 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from SEMP (-TCL, Toshiba), Sociedade Eletro-Mercantil Paulista; São Paulo
