- Country
- Brazil
- Manufacturer / Brand
- SEMP (-TCL, Toshiba), Sociedade Eletro-Mercantil Paulista; São Paulo
- Year
- 1966 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 228465

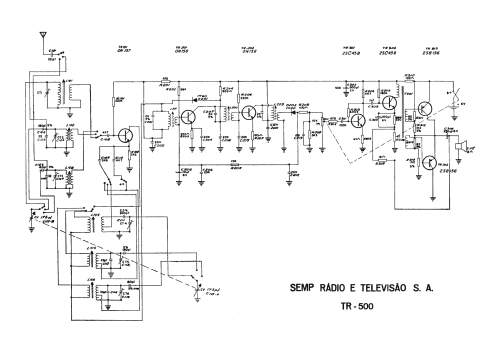

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 7
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Dry Batteries / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: TR-500 - SEMP -TCL, Toshiba, Sociedade
- Source of data
- -- Schematic
- Author
- Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
